Guys I need some info

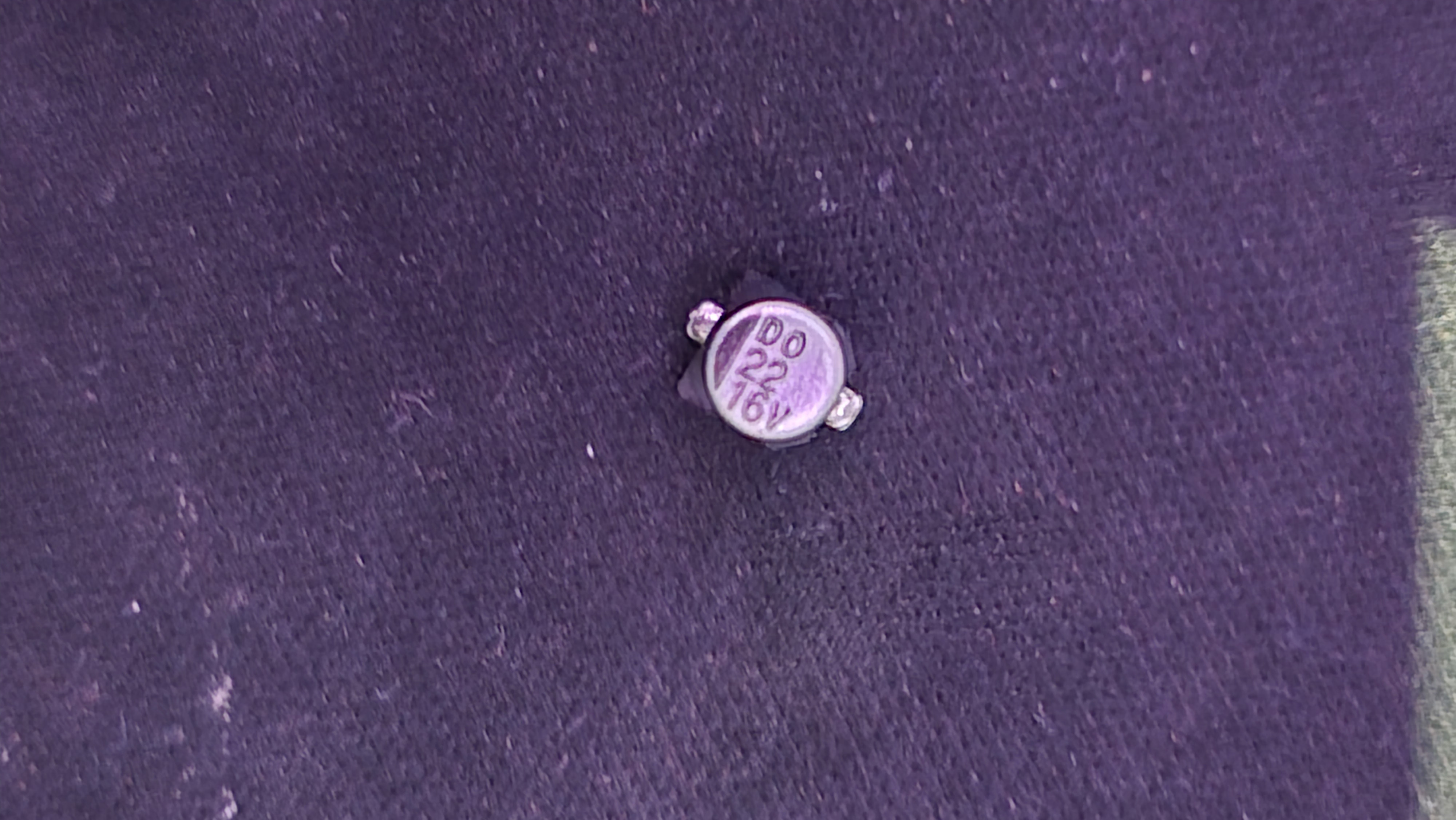

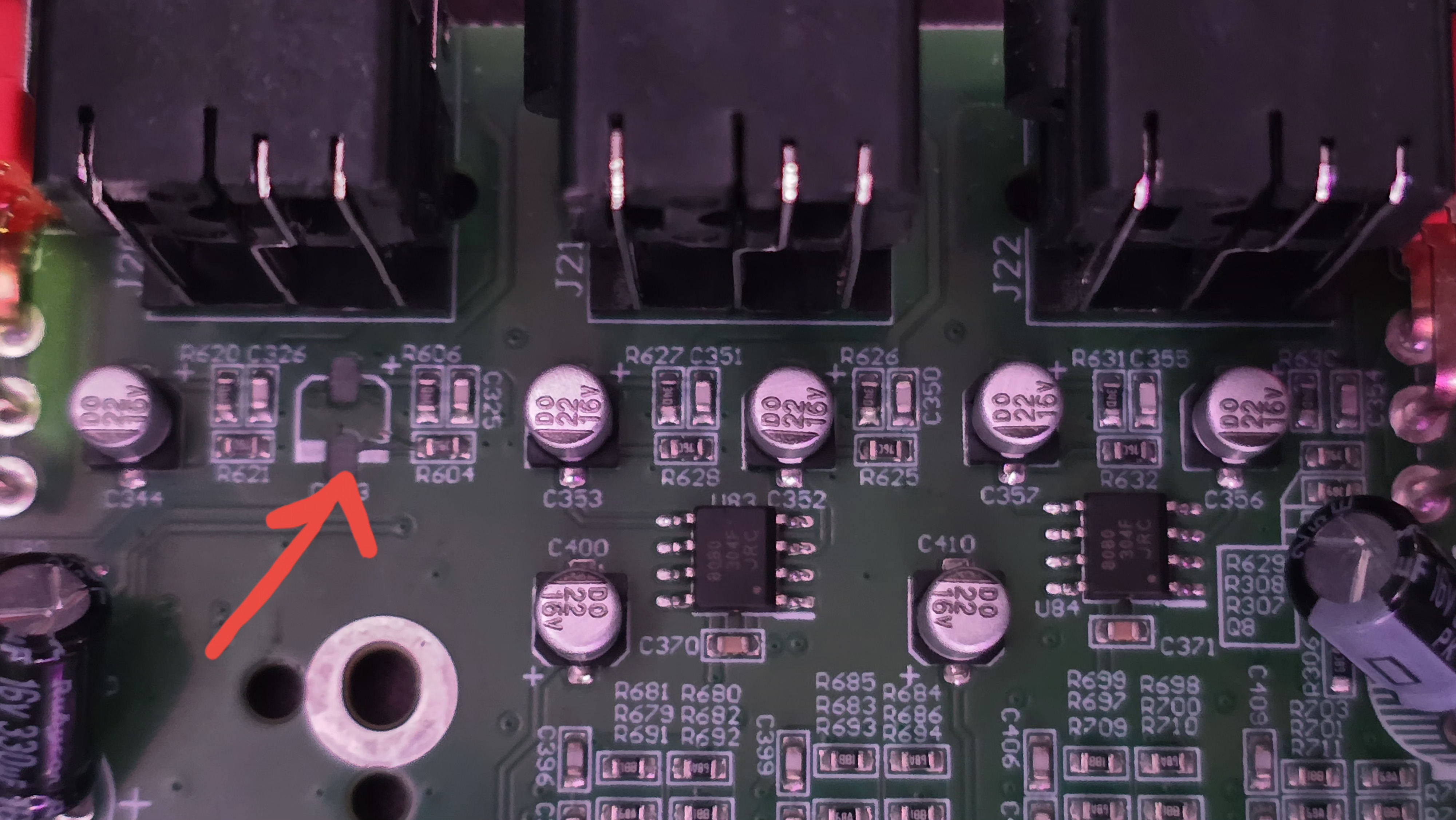

I have a issue my prime 4 + didn’t turn on ,try to open it ,and get if there noting wrong or component that has damage i,I found a small capacitor missing on the the sound card board i dnt know if it call capacitor , is it the cause the prime 4 didn’t power on ,any guy are expert in electronic can help me out pls plus is it able to fix it back on then board ?

Hey, this capacitor is only for your audio signal, has nothing to do with the power or booting up. Check the power supply, fuse, main board.

ok where exactly the fuse located on the board?

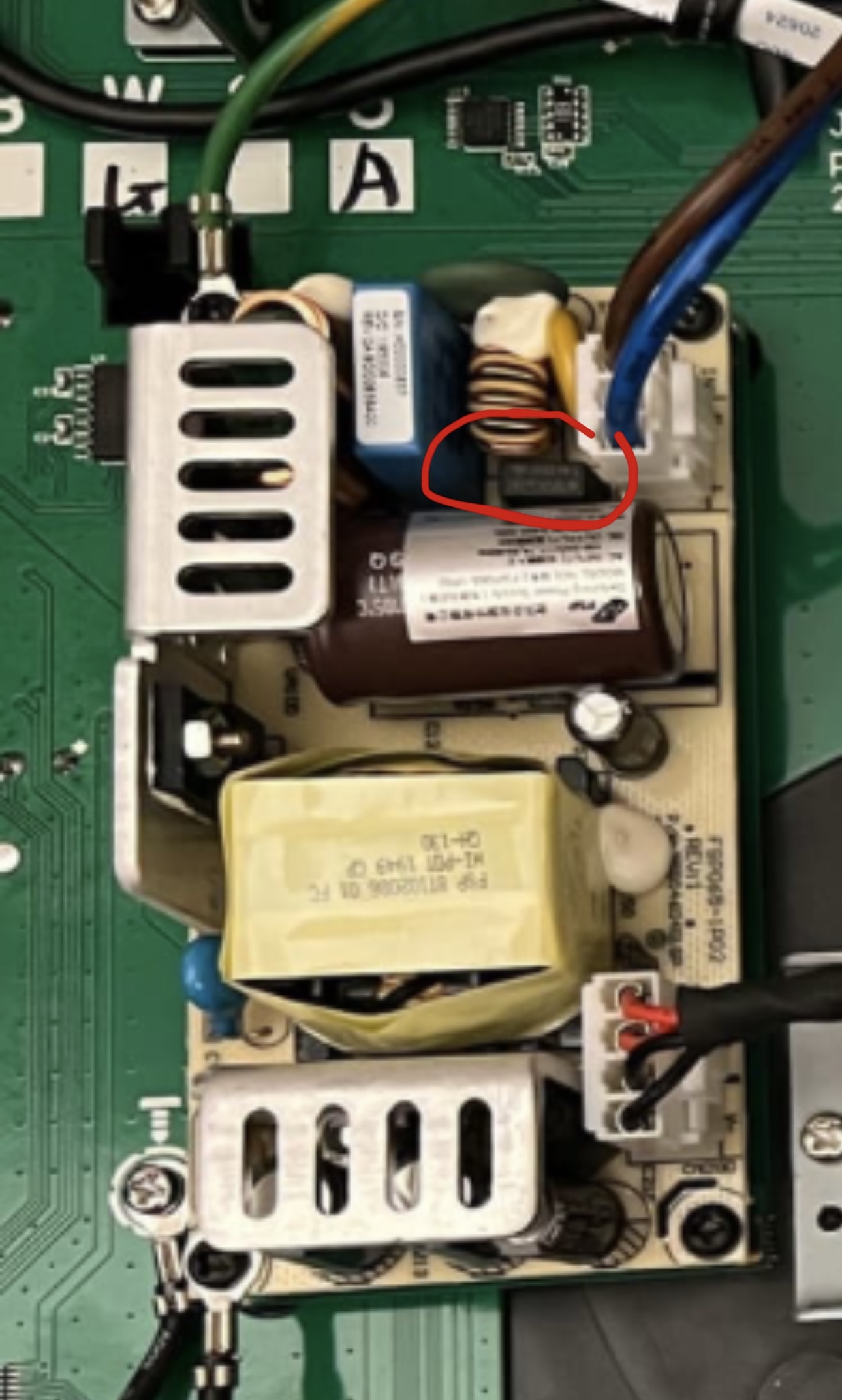

The fuse located on where I circle it in red

Fuse is a small black block like here:

But of you have no electronics knowledge, I suggest to take it to a qualified technician.

This one

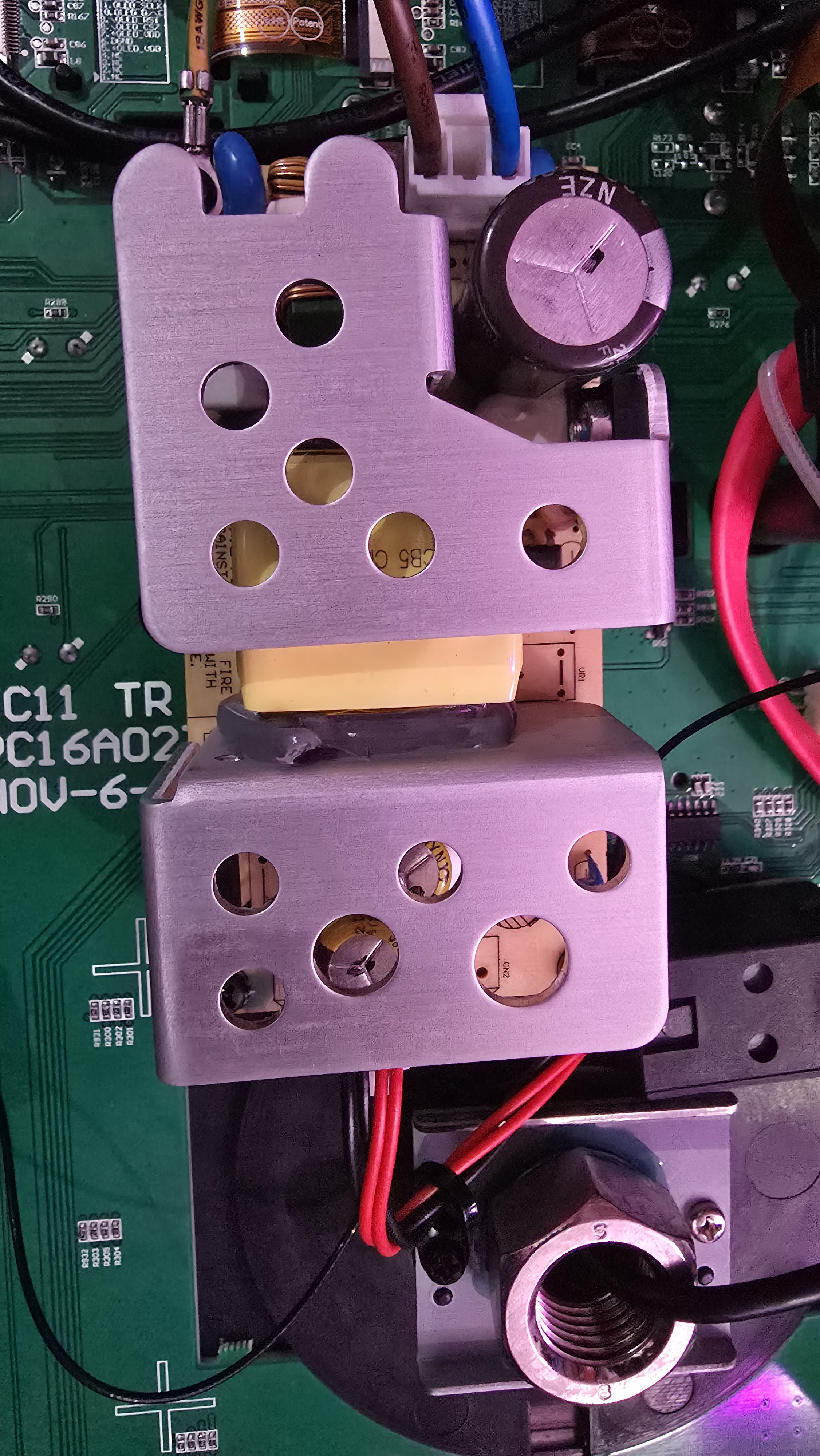

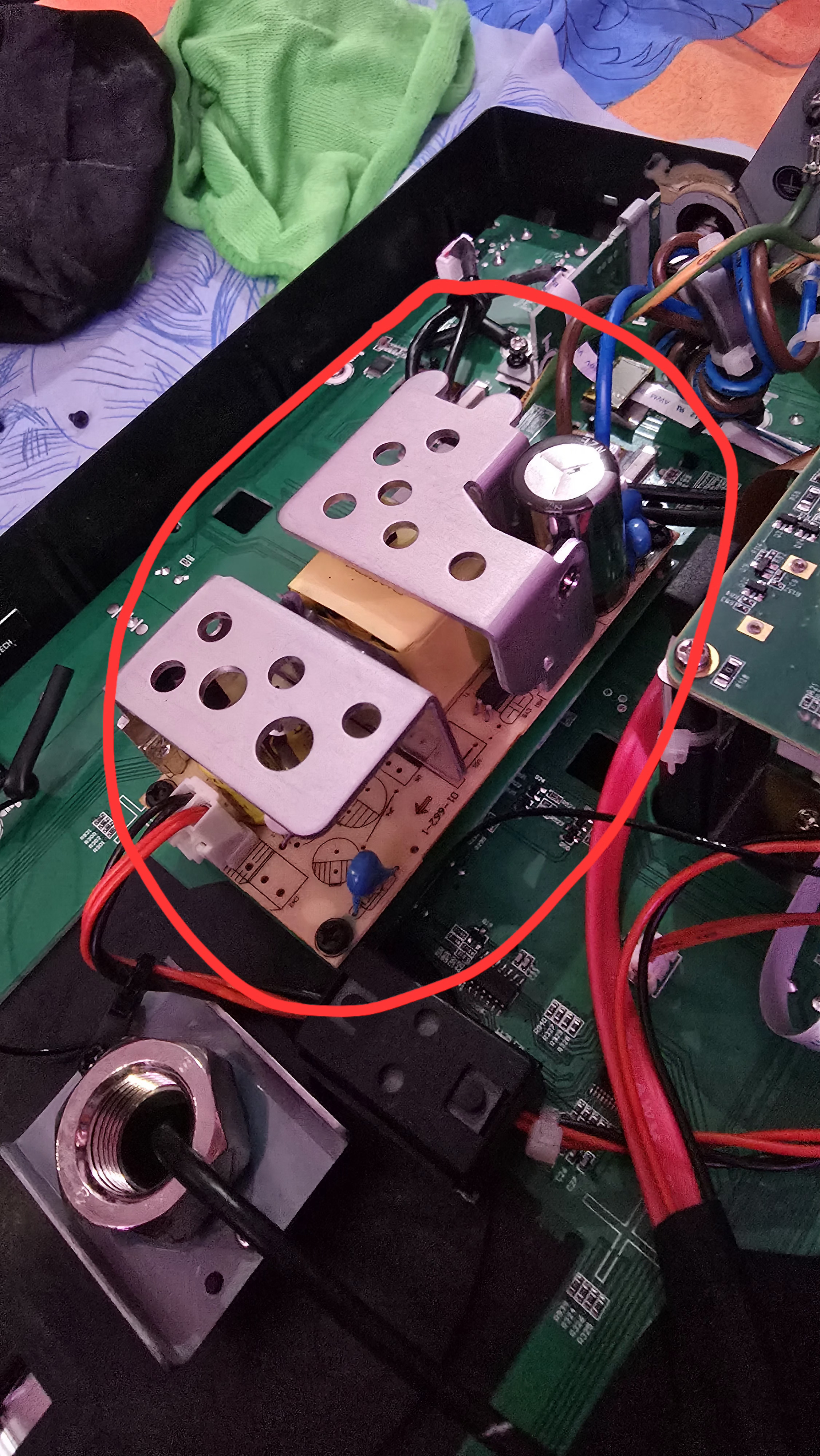

My power supply looks different from urs

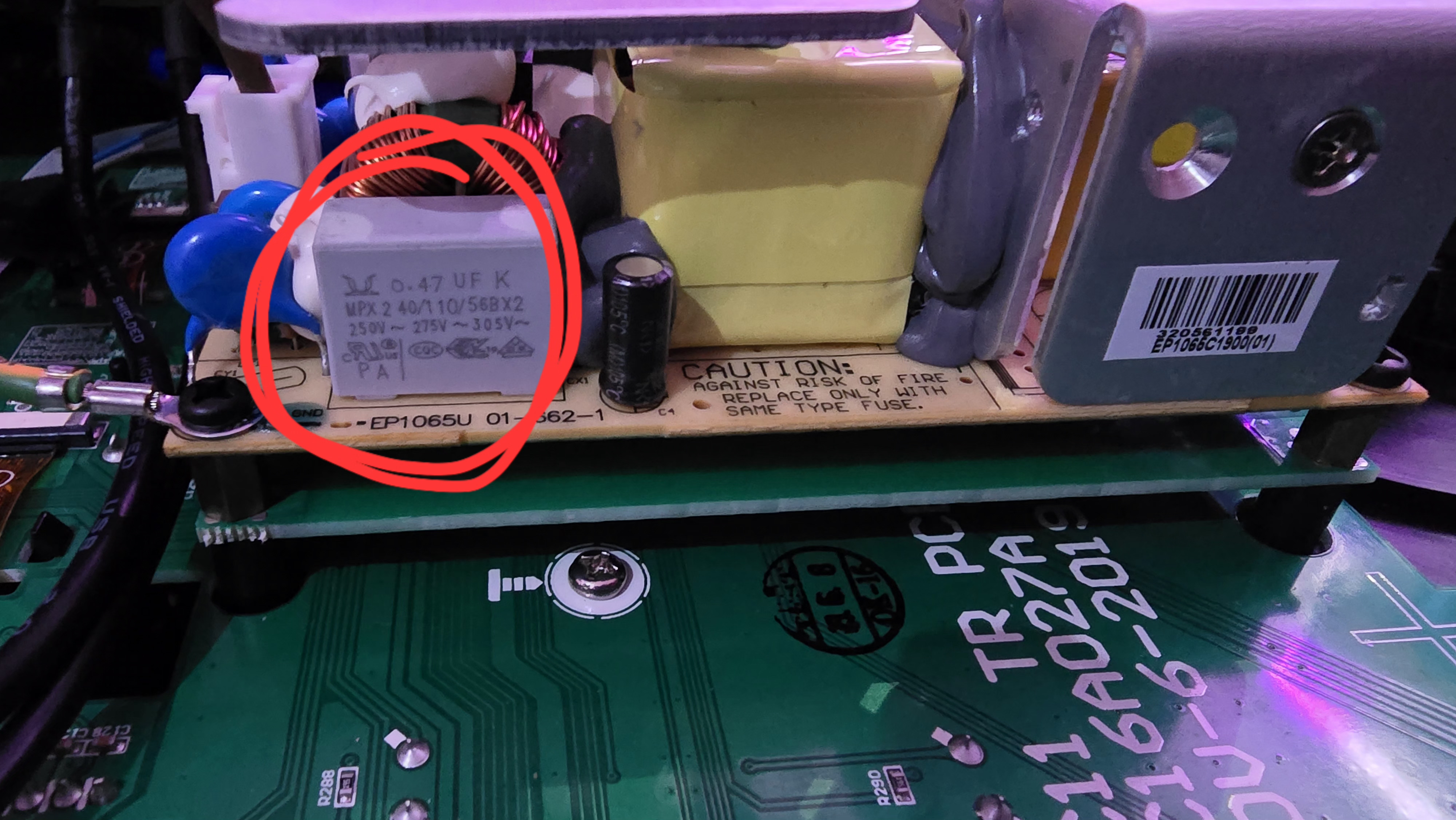

No, this one is a capacitor.

Power supply looks different, because I took a picture of a power supply where Fuse is more visible. On yours it’s under the heat sink.

it ok now i think there is a loose connection ,now it power up thank u god :star_struck:

plus anyone having probs with the play button that time i hav to press hard to play it feel like it nt respond fast there is a way to fix it replace it
