Cannot get X1800 to stream to OBS on Windows via USB

Engine DJ Hardware Mixers
1

This is my current set up:

USB1 (windows / OBS) USB2 (mac / VirtualDJ)

The MacBook air is able to do both, but it’s not very powerful laptop (otherwise I would run everything through VirtualDJ). I’m trying to reduce the amount of resources each laptop uses.

I have switched the USB’s round and it makes no difference.

Have tried setting it on broadcast mode (works on mac but not windows), tried changing to channels 1/2, and also tried 9/10.

…Just thought, I don’t mind ditching OBS for an alternative if there’s a better option.

2

Then why not swap and run OBS on the Mac & VDJ on the Windows laptop?

3

That’s a good point.

I’m pulling multiple cameras and VR into OBS - the mac can’t handle it all.

4

Sounds like you need a new computer then :slight_smile:

5

The X1800 can’t do what I’m trying to do?

6

Did you install the ASIO driver?

7

There’s a reason why most live streamers are using 1 camera most of the time when using the same computer for djing or at the most 2 cameras on a separate Mac.

I bought the Atem mini pro for video switching because my Mac treats it as one 1080p camera plus I rather have the fans go wild on the unit instead of my laptop which was way too much.

8

Yep, the X1800 diver buffer is above 600.

9

That’s my thinking too. Would be awesome if I could split things across two laptops via USB.

10

I hope your windows machine is not a Dell.

I guess we’re stuck trying to get good audio going into obs on a windows machine. One of the last things I can offer is to check OBS to see if you have all the proper up to date plug ins.

11

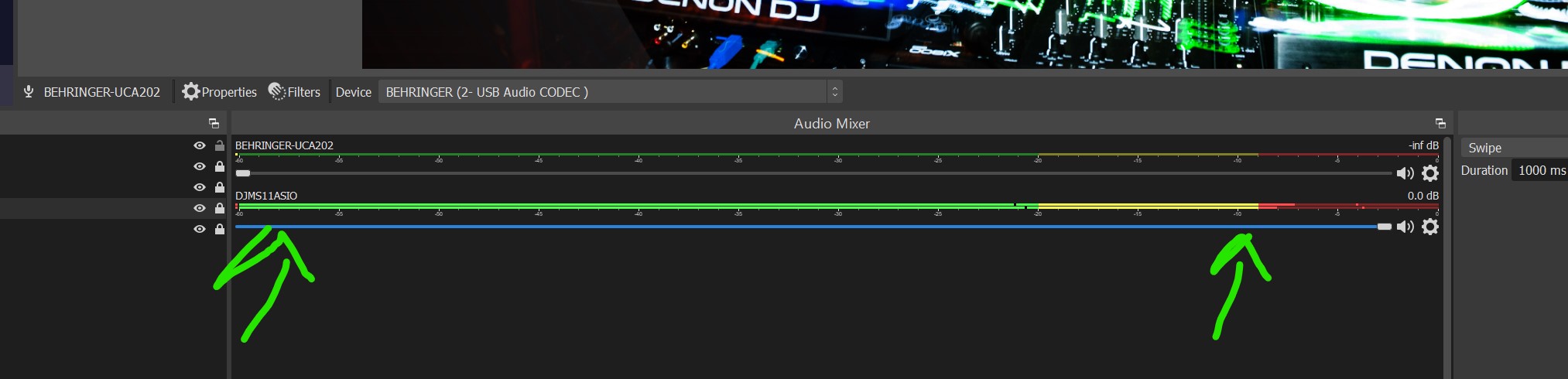

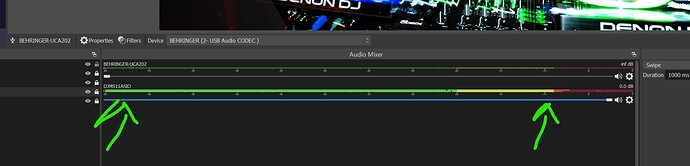

Screenshot 2022-02-06 142543
Screenshot 2022-02-06 1425433831×1473 402 KB

I thought you acquired a UCA soundcard? or was that someone else.

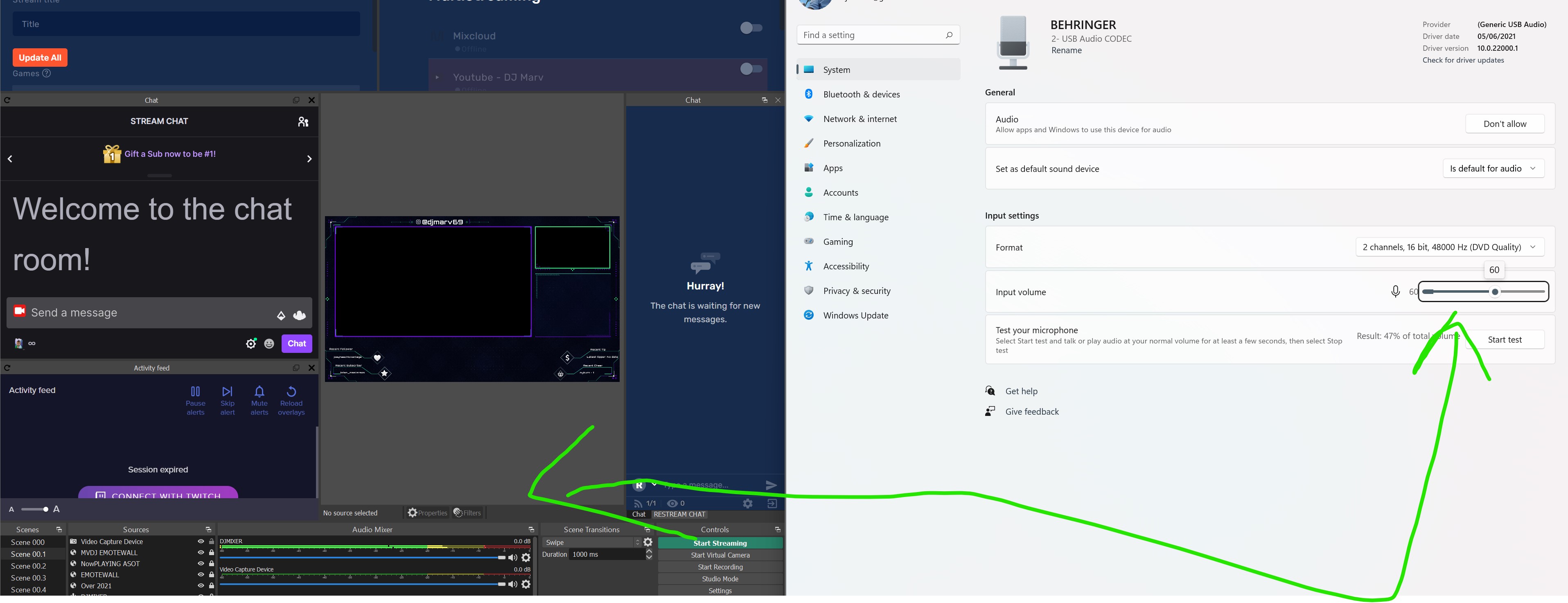

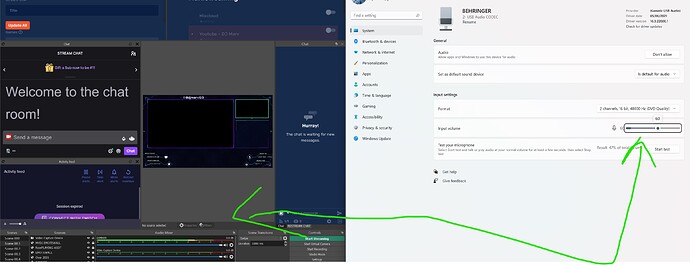

That’s a screen shot from my streaming PC.

My set-up -

  • Serato (music videos) running on Mac or standalone (engine)

  • 2 cameras connected to stream PC.

  • NDI porting videos from mac to PC as well

  • Booth out from mixer to Behringer UCA 202

I keeps the input volume on the UCA202 between 50 - 60% otherwise some electro noise and interference becomes audible…but thats what 20 quid gets you.

1 Like
12

I may have found a solution…

install this plug in for OBS

Basically it allows you to choose any asio channels from the mixer connected…just tested with my S11 which has the mix out channels on 5 and 6

Screenshot 2022-02-07 213551
Screenshot 2022-02-07 2135512026×490 110 KB

3 Likes
13

That’s exactly what’s needed.

14

That worked!

Wow, thank you so much to everyone who’s helped me with this. Amazing community, thank you all!

2 Likes
15

This topic was automatically closed 24 hours after the last reply. New replies are no longer allowed.
